Low Tonnage Press Brakes

Low Cost, Low Tonnage Press Brakes

With over 75 years of experience in building the most robust and reliable press brakes on the market, the experts at Pacific can design and build a machine tailored to your business’s needs.

By utilizing a non-proprietary hydraulic system—one that parallels our own proprietary hydraulic technology—we can lower costs while still giving you the same, high-quality Pacific press brake you know and love.

To learn more about our low tonnage press brakes, view our brochures, and submit an inquiry on our Contact Us page. Our experts look forward to assisting you!

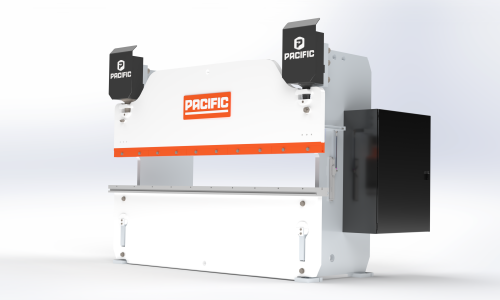

Low Tonnage Press Brake

Machine Highlights

Every Pacific press brake is made to last by using the thickest steel frame in the industry and is assembled with an interlocked frame design that does not rely on welds to hold tonnage.

By using a high-speed, non-proprietary power unit from HAWE Hydraulik, we are able to provide you with the same high-quality machines you know and trust, now at a lower cost.

Low deflection on the bed and ram produce high precision bends.

This system features an 18.5” high-resolution 2D graphical touchscreen with advanced bend sequence calculation, crowning control, tool/material/product libraries, servo-driven Y-axis algorithms for precise control, and also supports offline programming with Profile-58TL software.

Foot switches and two-hand run controls come standard with every machine to promote operator safety. Light curtain, laser safety systems, and area scanners are also available.

Autogauge
  • Reliability with Automec
    Automec has been in business for over 50 years, selling press brake and shear solutions to increase operator productivity. Automec’s primary products are CNC controls and gauging systems for existing press brakes and shears.
  • G24 Series
    The G24 Series is designed for applications where 24” of front-to-rear travel is desired. Each system features Automec’s DC motor drive, which is backed up by an electro-mechanical disc brake once the back gauge reaches position. This drive system is known for its high reliability and holding force.
  • R-Axis
    The programmable Gauge Bar Height option lets the operator program a different gauge bar height for each bend in a sequence. The system is totally programmable within the full 8” vertical range in increments of 0.1”.
DA-66S
  • State-of-Art Function Complete
    Delem’s DA-66S offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations, giving true feedback on the product feasibility and handling.
  • Features
    • 2D graphical touch screen programming mode
    • 3D visualization in simulation and production mode
    • 24” high-resolution color TFT
    • Delem Modusys compatibility (module scalability and adaptivity)
    • Profile-S2D offline software
    • Sensor bending & correction interface
    • Job list functionality
    • Shop floor control
    • USB, peripheral interfacing
Sentinel Plus
  • Fast Response Laser Protection
    The Sentinel Plus laser transmitter and receiver by Lazersafe are mounted to the upper beam of the press brake. A continuous block laser field protects the zone around the punch tip, allowing the operator to safely handle the workpiece as the tools close at high speed. If an obstruction is detected, the machine is automatically stopped.
  • Sentinel Plus XL
    Depending on your workshop’s environment, the Sentinel Plus XL may be recommended. The Sentinel Plus XL is a high-powered laser that can cut through dusty and cloudy environments as well as provide greater resistance to machine vibration.
Crowning & Clamping
  • Simplify Your Press Brake Tooling Needs
    Wilson Tool manufactures tooling and clamping solutions geared toward decreasing setup times, speeding part flow, and optimizing part quality.
  • Express Crowning
    • OEM or aftermarket mounting
    • Hand crank with digital readout or CNC electric drive connected directly to the machine
    • Hardened to 28-32 HRC, which makes it substantially tougher than the competition
    • Micro crowning every 200mm
    • TY adjustable 0-0.76mm (0-0.030”)
    • Offer in manual and hydraulic clamping
  • Express Rail 2000
    • Hydraulically clamps WT-style and all other similar 20mm wide tang punches
    • Clamps tool segments as small as 15.8mm (.625”)
    • Low profile to maximize open height
    • Wireless remote or wired pendant for clamp release
