Large Press Brakes

Press Brakes Utilizing Pacific’s Patented Hydraulic Technology

Whether you have a highly repeatable process that simply requires a work horse like our K-Series, or you are a job shop that frequently changes programs and needs the CNC capabilities of our Fabri-K (FK) Series to keep up, Pacific has a press brake for every application.

With over 75 years of experience building the most robust, reliable press brakes on the market, the experts at Pacific can build the machine to your business’ needs.

To learn more about our K and FK Series press brakes, view our brochures and submit an inquiry on our Contact Us page. Our experts look forward to assisting you!

Machine Highlights

Every Pacific press brake is made to last by using the thickest steel frame in the industry and is assembled with an interlocked frame design that does not rely on welds to hold tonnage

Pacific’s machines are designed with robust pressure pads that spread the load out across the ram, putting less stress on the cylinders.

Helps prevent the propagation of micro cracks in the frame to ensure a longer frame and machine life.

  • U2200 PSI system operating pressure
  • Active hydraulic leveling
  • Pacific’s own robust valves are:
    • Rebuildable and extended use for cost effective refurbishment
    • Made in-house and readily available to decrease downtime
    • Built to be compatible with most Pacific machines for easy replacement

As the machine is tilted, Pacific’s guides and cylinders prevent additional stress on the machine, promoting operational longevity. Because the cylinders are secured to the center of the ram, true centerline loading is ensured.

Our cylinder rod ratio is 2:1, the highest ratio in the industry, which allows the machine to consistently absorb breakthrough shock better than any other machine on the market.

Foot switches and two-hand run controls come standard with every machine to promote operator safety. Light curtain, laser safety systems, and area scanners are also available.

Pacific has a full staff of engineers available to design in a wide range of configurations to meet every customer’s requirements.

K-Series Manual Press Brakes
  • Accuracy & Repeatability
    Integrated systems and construction allow for repeatable and accurate bending within .002″ under full load.
  • Manual Adjustment
    The K-Series utilizes temperature compensated mechanical stroke controls with manually adjustable limit switches to quickly change the desired ram depth, stroke, and tonnage of the machine.
  • Backgauges
    Integrated options are available.
 Fabri-K (FK) Series CNC Press Brakes
  • Accuracy & Repeatability
    Integrated systems and construction allow for repeatable and accurate bending within .002″ under full load.
  • Programmable HMI
    Precise within .001″ under load, and automatic tonnage, stroke and depth control.
  • Bed Referenced Scales
    The ram axes are controlled through bed referenced, high precision scales.
  • Backgauges
    Integrated options are available.

High Tonnage Gallery

FK 1250 Ton 16ft Press Brake
K 400 Ton 14ft Press Brake
K 400 Ton 14ft Press Brake
FK 1750 Ton 40ft Press Brake
FK 3000 Ton 31ft Press Brake

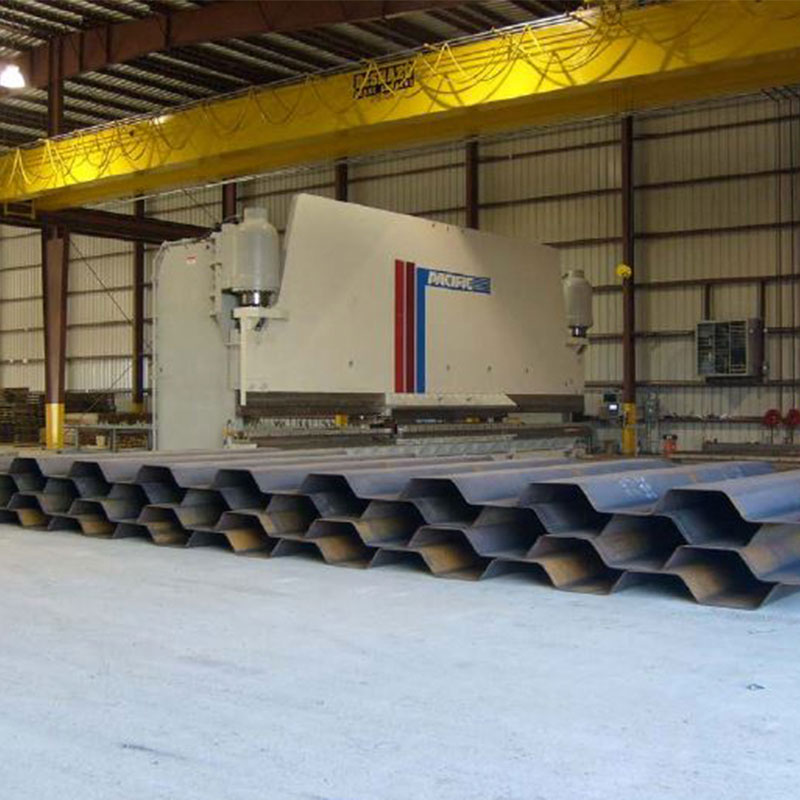

FK 1500 Ton 45ft Corrugation Forming
K 600 Ton 14ft Press Brake
FK 1250 Ton 16ft Press Brake
